DYZ-06C
Feilun
| Type | Major Overall & Connection Dimensions(mm) | Nominal operating perssure(MPa) | Pressure adjusting range（MPa) | ||||
| H | H1 | W1 | W2 | M | |||
| DYS-06C125 | 111 | 88 | 45 | ∅59 | NPT1/4 | P1=4.0 | P2=0.2~1.2 |
| DYS-06C300 | 111 | 88 | 45 | ∅59 | NPT1/4 | P1=4.0 | P2=1.0~2.2 |
| DYS-06C400 | 111 | 88 | 45 | ∅59 | NPT1/4 | P1=4.0 | P2=2.0~2.9 |
Nominal Pressure：4.0MPa
Design Temperature：-196℃~+85℃
Suitable Media：LO2、LN2、LAr、LNG
Body、Cover：HPb59-1
Diaphragm：Qsn6.5-0.1
Spring：1Cr18Ni9
Main Sealing：PTFE

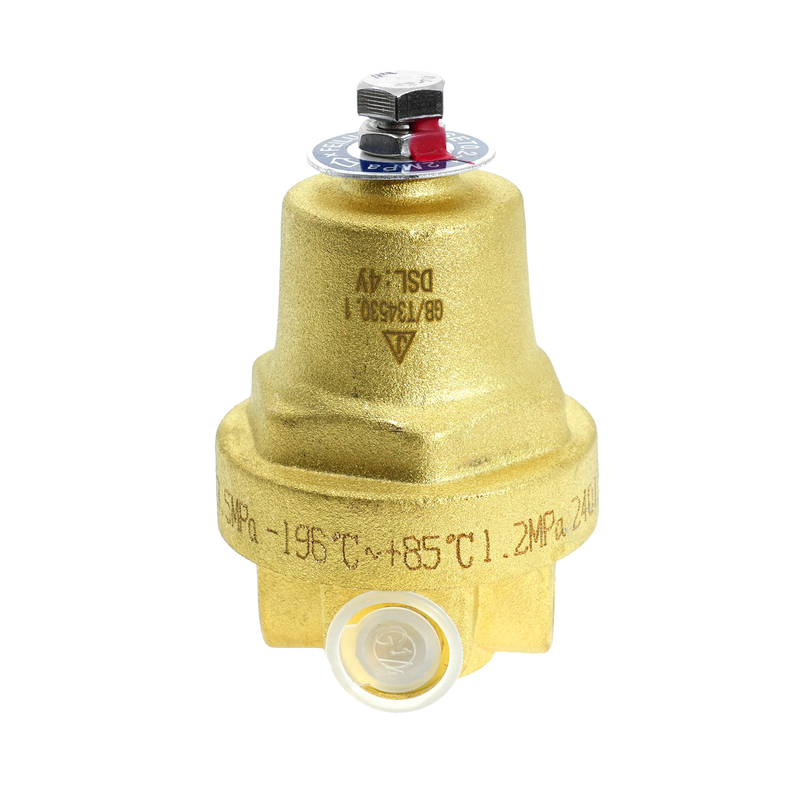

With its combination pressure regulator design, the DYZ-06C provides precise pressure control, ensuring that your system operates efficiently and effectively. The low temperature cryogenic design of this valve makes it well-suited for use in a variety of applications, including industrial gas handling and cryogenic storage. It is capable of handling a wide range of temperatures and pressures, making it a versatile solution for many different systems.
The DYZ-06C is easy to install and maintain, with a simple yet robust design that allows for quick and easy access to internal components. Its compact size also makes it easy to install in tight spaces.
One of the key features of the DYZ-06C is its high-quality construction. The brass alloy used in its construction provides excellent thermal conductivity, making it an ideal choice for use in low temperature applications. The brass also ensures that the valve is durable and long-lasting, even in harsh environments.
Overall, the DYZ-06C Brass Low Temperature Cryogenic Combination Pressure Regulator is a reliable and efficient solution for any cryogenic system that requires precise pressure control. Its high-quality construction, efficient design, and versatile performance make it an excellent choice for a wide range of applications.
[NOTED]
1、The material for producing the valve is the raw material processed by the factory itself. Through the smelting furnace, the raw materials such as electrolytic copper and lead plate are produced into HPb59-1 (Brass) higher than the national standard, and then through special extrusion, cutting, processing, cleaning and other equipment Produce the required parts. Therefore, source quality control is a vital part of the entire quality management system.
2、We are self-produced and sold, have a large inventory and low MOQ（1pcs).
3、We have related cryogenice valves certificates.
